Liv

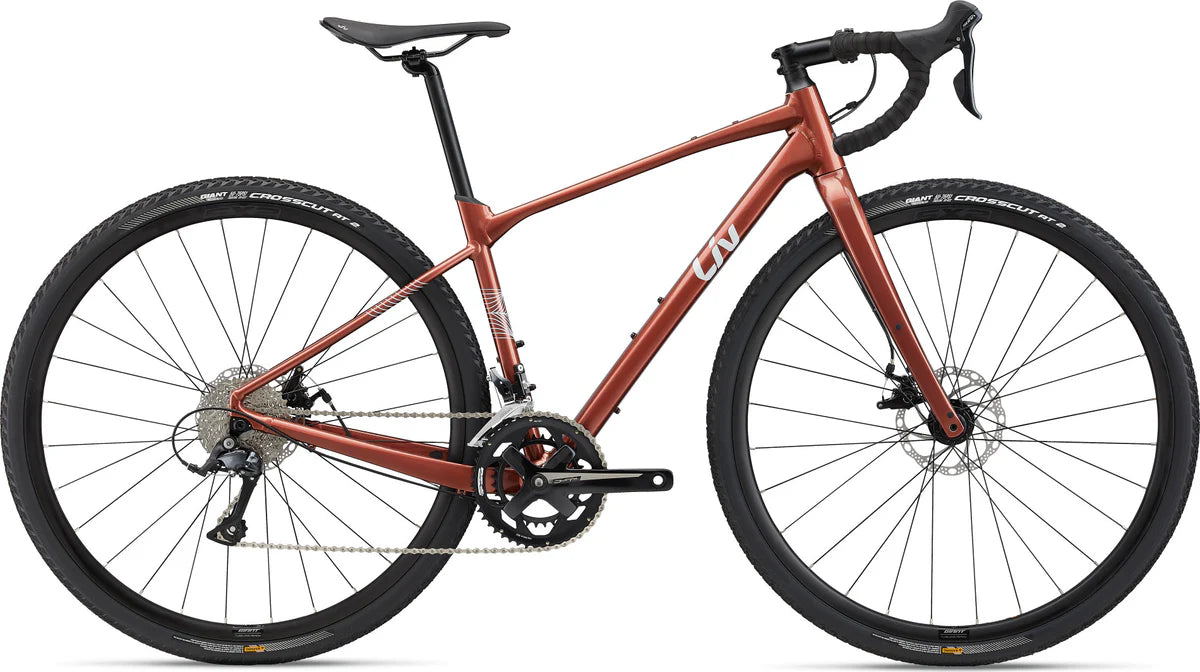

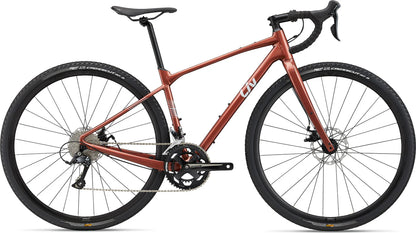

LIV Devote 2 - Bicicleta de Gravel Aluminio. De mujer

LIV Devote 2 - Bicicleta de Gravel Aluminio. De mujer

Precio habitual $949.000
Precio habitual $0 Precio de oferta $949.000
Oferta Agotado
Impuesto incluido. Los gastos de envío se calculan en la pantalla de pago.
TALLA
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
    XS S M L
A Seat Tube Length (mm) (inch) 39015,4 42016,5 46518,3 50019,7
B Seat Tube Angle (degrees) 75,0° 75,0° 74,5° 74,5°
C Top Tube Length (mm) (inch) 51520,3 52520,7 53521,1 55021,7
D Head Tube Length (mm) (inch) 953,7 1254,9 1556,1 1807,1
E Head Tube Angle (degrees) 70,5° 70,5° 71,0° 71,0°
F Fork Rake (mm) (inch) 502 502 502 502
G Trail (mm) (inch) 75,93 75,93 72,52,8 72,52,8
H Wheelbase (mm) (inch) 101339,9 102040,2 102240,2 103940,9
I Chain Stay Length (mm) (inch) 43016,9 43016,9 43016,9 43016,9
J Bottom Bracket Drop (mm) (inch) 803,1 803,1 803,1 803,1
K Stack (mm) (inch) 53020,9 55822 58823,1 61224,1
L Reach (mm) (inch) 37814,9 37614,8 37214,6 38015
L ReachToHandlebar (mm) (inch) 42916,9 43717,2 44317,4 45217,8
M Stand Over Height (mm) (inch) 67826,7 70627,8 74429,3 77430,5
N Handlebar Width (mm) (inch) 40015,7 40015,7 42016,5 42016,5
O Stem Length (mm) (inch) 702,8 803,1 903,5 903,5
P Crank Length (mm) (inch) 1656,5 1706,7 172,56,8 172,56,8
Q Wheel Size 700c 700c 700c 700c
Specs





ESPECIFICACIONES TÉCNICAS

  • Frame: ALUXX-Grade Aluminum, 12x142mm thru-axle, disc
  • Fork: Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
  • Handlebar: Giant Contact XR D-Fuse, 31.8 XS:40cm, S:40cm, M:42cm, L:42cm
  • Grips: Liv All Condition
  • Stem: Giant Sport XS:70mm, S:80mm, M:90mm, L:90mm
  • Seatpost: Giant D-Fuse, alloy
  • Saddle: Liv Approach
  • Shifters: Shimano Sora, 2x9
  • Front Derailleur: Shimano Sora
  • Rear Derailleur: Shimano Sora, long cage
  • Brakes: Tektro MD-C550 mechanical, Giant MPH rotors [F]160mm, [R]160mm
  • Brake Levers: Shimano Sora
  • Cassette: Shimano HG400, 11x34
  • Chain: KMC X9 with Missing Link
  • Crankset: FSA Vero Pro, 32/48 XS:165mm, S:170mm, M:172.5mm, L:172.5mm
  • Bottom Bracket: cartridge
  • Rims: Giant S-X2 Disc wheelset
  • Hubs: Giant S-X2 Disc wheelset
  • Spokes: Giant S-X2 Disc wheelset
  • Tires: Giant CrossCut AT 2, 700x38c, tubeless
  • Extras: tubeless prepared, 45mm max tire size
Ver todos los detalles
